Insulated bearings

Time：2026-10-16 15:16:46 Click：28

Ddescription

Product introduction

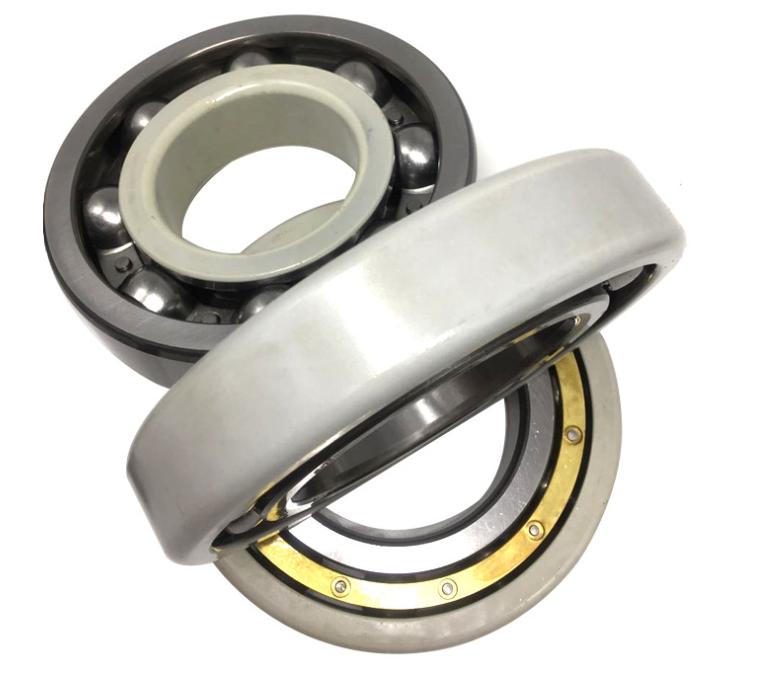

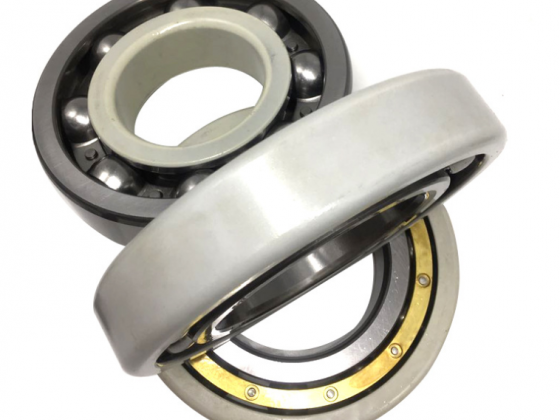

Insulated bearings are with insulation properties. Insulated bearings usually use insulation coatings applied to the inner or outer surface of the bearing to achieve insulation function. This insulation coating can effectively prevent current from passing through the bearing and prevent the occurrence of electrical corrosion.

Insulated bearings
Designation	Bore diameter (d)	Outside diameter(D)	Width (B)	Basic dynamic load rating(KN)	Limitingspeed
6212 M/P65HS0VL0241	60	110	22	55.3	11000
6214 M/C4VL0241	70	125	24	63.7	10000
6215 M/C4VL0241	75	130	25	68.9	9500
6215/C3VL0241	75	130	25	68.9	6700
6216/C3VL0241	80	140	26	72.8	6000
6217 M/C4VL0241	85	150	28	87.1	8000
6217/C3VL0241	85	150	28	87.1	5600
6218/C3VL0241	90	160	30	101	5300
6219 M/C3VL0241	95	170	32	114	7500
6219/C3VL0241	95	170	32	114	5000
6220 M/C4VL0241	100	180	34	127	7000
6220/C3VL0241	100	180	34	127	4800
6222 M/C3VL0241	110	200	38	151	6300
6222 M/C4VL0241	110	200	38	151	6300
6222/C3VL0241	110	200	38	151	4300
6224/C3VL0241	120	215	40	146	4000
6226/C3VL0241	130	230	40	156	3600
6226/C3VL2071	130	230	40	156	3600
6228/C3VL2071	140	250	42	174	3400
6230/C3VL2071	150	270	45	186	3200
6310 M/C3VL0241	50	110	27	65	12000
6310 M/C4VL0241	50	110	27	65	12000
6311 M/C3VL0241	55	120	29	74.1	11000
6311 M/C4VL0241	55	120	29	74.1	11000
6312 M/C3VL0241	60	130	31	85.2	10000
6312 M/C4VL0241	60	130	31	85.2	10000
6312/C3VL0241	60	130	31	85.2	7000
6313 M/C3VL0241	65	140	33	97.5	9500
6313 M/C4VL0241	65	140	33	97.5	9500
6313/C3VL0241	65	140	33	97.5	6700
6314 M/C3VL0241	70	150	35	104	9000
6314 M/C4VL0241	70	150	35	104	9000
6314/C3VL0241	70	150	35	111	6300
6315 M/C3VL0241	75	160	37	119	8000
6315 M/C4HVL0241	75	160	37	119	8000
6315/C3VL0241	75	160	37	119	5600
6315-Z/C3VL0241	75	160	37	119	5600
6316 M/C3VL0241	80	170	39	130	7500
6316 M/C4VL0241	80	170	39	130	7500
6316/C3VL0241	80	170	39	130	5300
6317 M/C3VL0241	85	180	41	140	7500
6317/C3VL0241	85	180	41	140	5000
6318 M/C3VL0241	90	190	43	151	7000
6318/C3VL0241	90	190	43	151	4800
6319 M/C3VL0241	95	200	45	159	6300
6319/C3VL0241	95	200	45	159	4500
6320 M/C3VL0241	100	215	47	182	6000
6320/C3VL0241	100	215	47	182	4300
6321 M/C3VL0241	105	225	49	195	5600
6322 M/C3VL0241	110	240	50	216	5300
6322 M/C4VL0241	110	240	50	216	5300
6322/C3VL0241	110	240	50	216	3800
6324 M/C3VL0241	120	260	55	216	5000
6324/C3VL2071	120	260	55	216	3400
6326 M/C3VL0241	130	280	58	229	4500
6326/C3VL2071	130	280	58	229	3200
6328 M/C3VL2071	140	300	62	265	4300
6328/C3VL2071	140	300	62	265	3000
6330/C3VL2071	150	320	65	286	2800
6332 M/C3VL2071	160	340	68	291	3800
NU 1017 M/C3VA3091	85	130	22	72.1	6000
NU 1018 M/C4VA3091	90	140	24	80.9	5600
NU 1022 M/C3VA3091	110	170	28	146	4800
NU 210 ECM/C3HVA3091	50	90	20	73.5	9000
NU 210 ECM/C4HVA3091	50	90	20	73.5	9000
NU 212 ECM/C3VL0241	60	110	22	93.5	7500
NU 216 ECM/C3VL0241	80	140	26	160	5600
NU 217 ECM/C3VL0241	85	150	28	190	5300
NU 218 ECM/C3VA3091	90	160	30	208	5000
NU 220 ECM/C3VL0241	100	180	34	285	4500
NU 222 ECM/C3VL0241	110	200	38	335	4000
NU 224 ECM/C3VL0241	120	215	40	390	3600
NU 310 ECM/C3VL0241	50	110	27	127	8000
NU 312 ECM/C3VL0241	60	130	31	173	6700
NU 313 ECM/C3VL0241	65	140	33	212	6000
NU 314 ECM/C3VL0241	70	150	35	236	5600
NU 315 ECP/VL0241	75	160	37	280	5300
NU 316 ECM/C3VL0241	80	170	39	300	5000
NU 317 ECM/C3VL0241	85	180	41	340	4800
NU 318 ECM/C3VL0241	90	190	43	365	4500
NU 319 ECM/C3VL0241	95	200	45	390	4300
NU 320 ECM/C3VL0241	100	215	47	450	3800
NU 322 ECM/C3VL0241	110	240	50	530	3400
NU 324 ECM/C3VL0241	120	260	55	610	3200
